Chauvin Arnoux PEL 103 Logger + cleste de curent MiniFLEX MA193

Ergonomic, magnetizat si potrivit pentru toate tipurile de tablouri electrice, loggerul PEL103 ofera toate masuratorile de putere si energie simultan.
Livrat impreuna cu traductorul de curent Chauvin Arnoux MiniFLEX MA193.

Avantaje:

• Instalatii monofazate, trifazate si faza separata cu sau fara nul, ca si alte configuratii complexe
• Implementare fara intreruperea alimentarii cu energie la retea
• Comunicare BlueTooth, Ethernet si USB
• Recunoastere automata a senzorilor conectati
• Inregistrare pe carduri SD si SD-HC
• Comunicare in timp real cu un PC si analiza utilizand transferul PEL

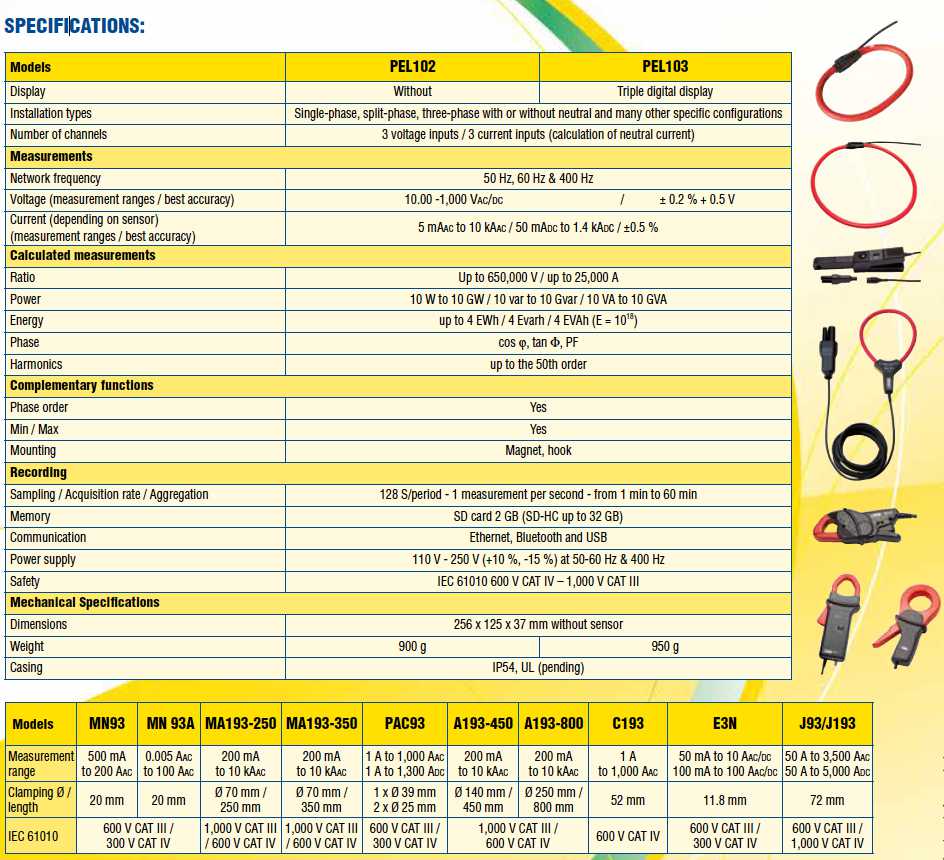

Specificatii tehnice:

• Tensiune: pana la 1,000 V
• Curent: pana la 10,000 A
• Raport tensiune / raport curent pana la 650,000 V / pana la 25,000 A
• Putere de la 10 W/var/VA pana la 10 GW/Gvar/GVA
• Energie pana la 4EWh/ 4 EVAh / 4 Evarh
• Faza: cos φ, tan Φ, PF
• Armonice pana la al 50-lea ordin.
• Card memorie SD 2 GB (Card SC-HC pana la 32 GB)

Pachetul de livrare contine:

• Chauvin Arnoux PEL 103 Power and Energy Logger
• Traductor de curent Chauvin Arnoux MiniFLEX MA193
• 4 x cordoane de test (banana drept / banana drept), 3m, (negru),
• 4 x clipsuri crocodil (negru)
• SD card 2 GB
• Adaptor SD-USB
• Set inele si inserturi pentru senzori si traductori de curent
• Cablu principal, Cablu USB (tip A / tip B)
• Sistem de fixare MultiFIX
• Geanta de transport
• Software PEL Transfer
• Manual de utilizare
• Ghid de instalare rapida
